Unity ELITE 5 PRO FB4
- Regular price
- £2,565.00
- Sale price
- £2,565.00
- Regular price
-
Shipping calculated at checkout.
Only 80 Items In Stock.Hurry up before the product runs out!
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Exclusive
Product Description

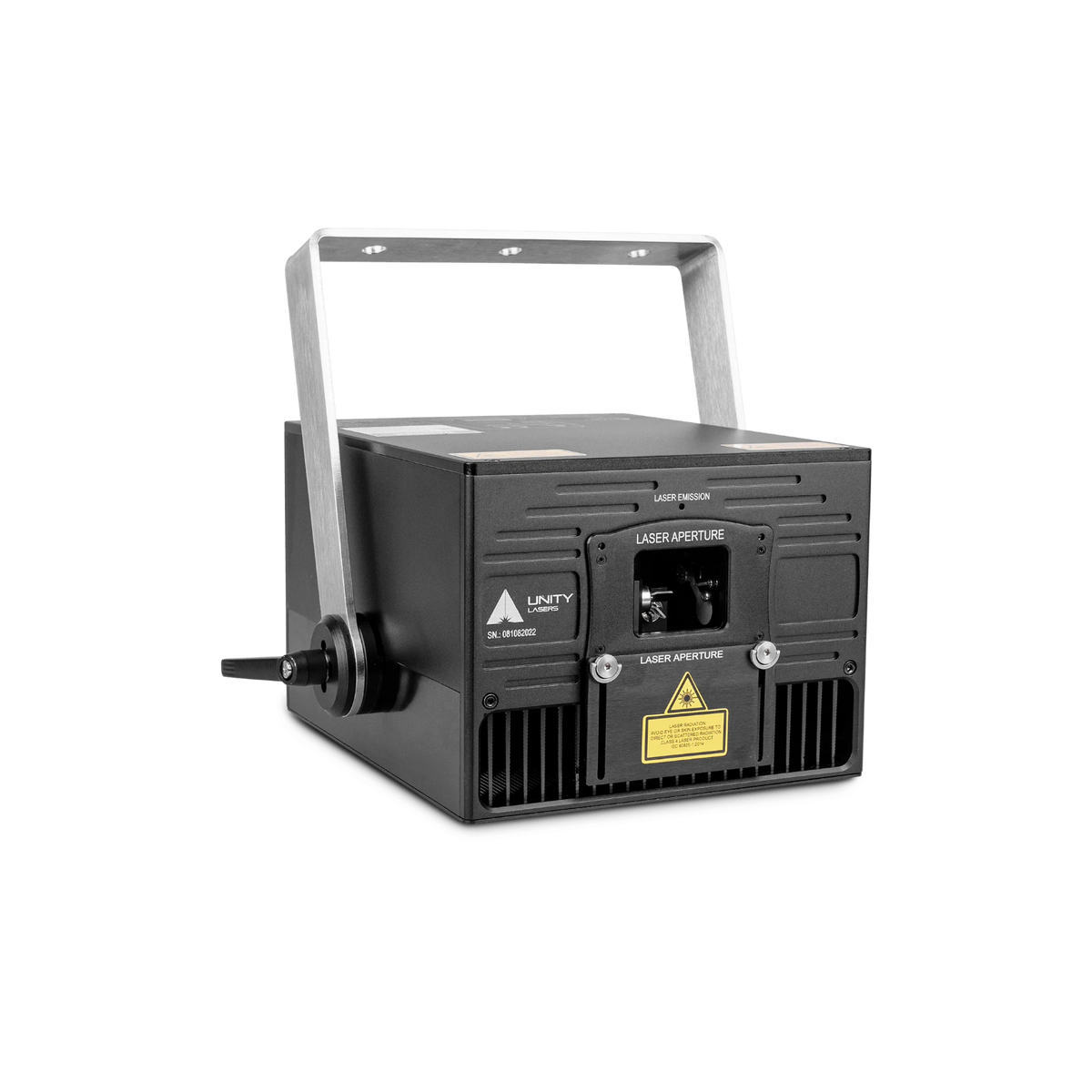

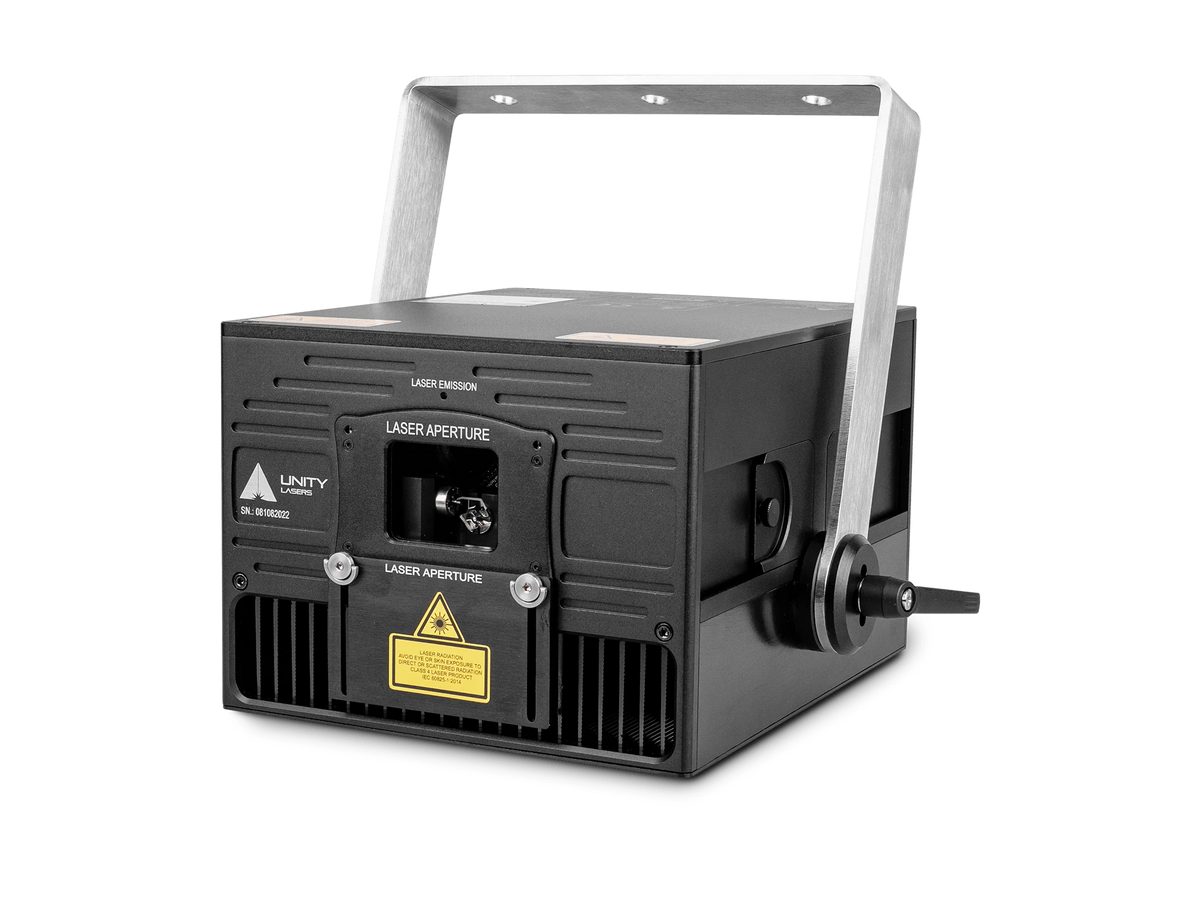

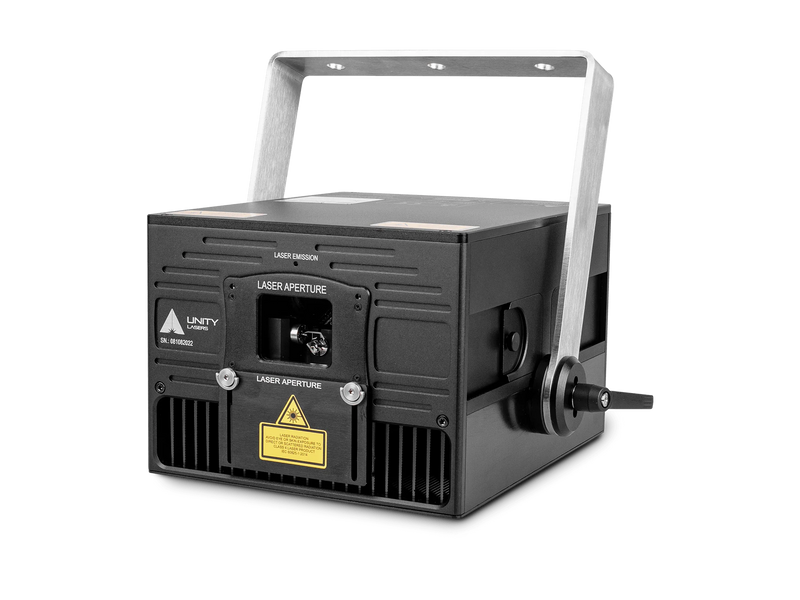

Unity ELITE 5 PRO FB4
Unity Elite 5 PRO FB4 lasers is our top-of-the-range laser system with the integrated Pangolin FB4 media server.
Elite 5 PRO FB4 laser is ideal for clubs, lighting designers and special effects and rental companies who prefer direct control of their lasers over DMX and Artnet.
All systems use semiconductor laser diodes, are full-colour RGB with analogue modulation, and are integrated into robust housing.
They are suitable for permanent installations in clubs, touring and rental situations.
The Elite 5 PRO FB4 is suitable for medium-sized indoor venues and events.
Specifications
| Product Name: | Unity ELITE PRO 5 FB4 |
| Type Of Laser: | Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output: | >5W |
| Suitable For: | Lighting professionals: larger indoor venues, clubs, theater, house of worship, gymnasium (up to 5,000 people), small outdoor shows. Beam show, text, graphic, and mapping capable |
| Control Signal: | Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android] |
| Scanning System: | 35,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 9kg |
| Package Includes: | Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card |
| R | G | B [mW]: | 1,800 | 1,600 | 2000 |
| Beam Size [mm]: | 6 x 5 |
| Beam Divergence: | <1.2mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-240V/50Hz |
| Consumption: | Max. 250W |
| Operation Temperature: | 10-40 °C |
| Ingress Rating: | IP4X |

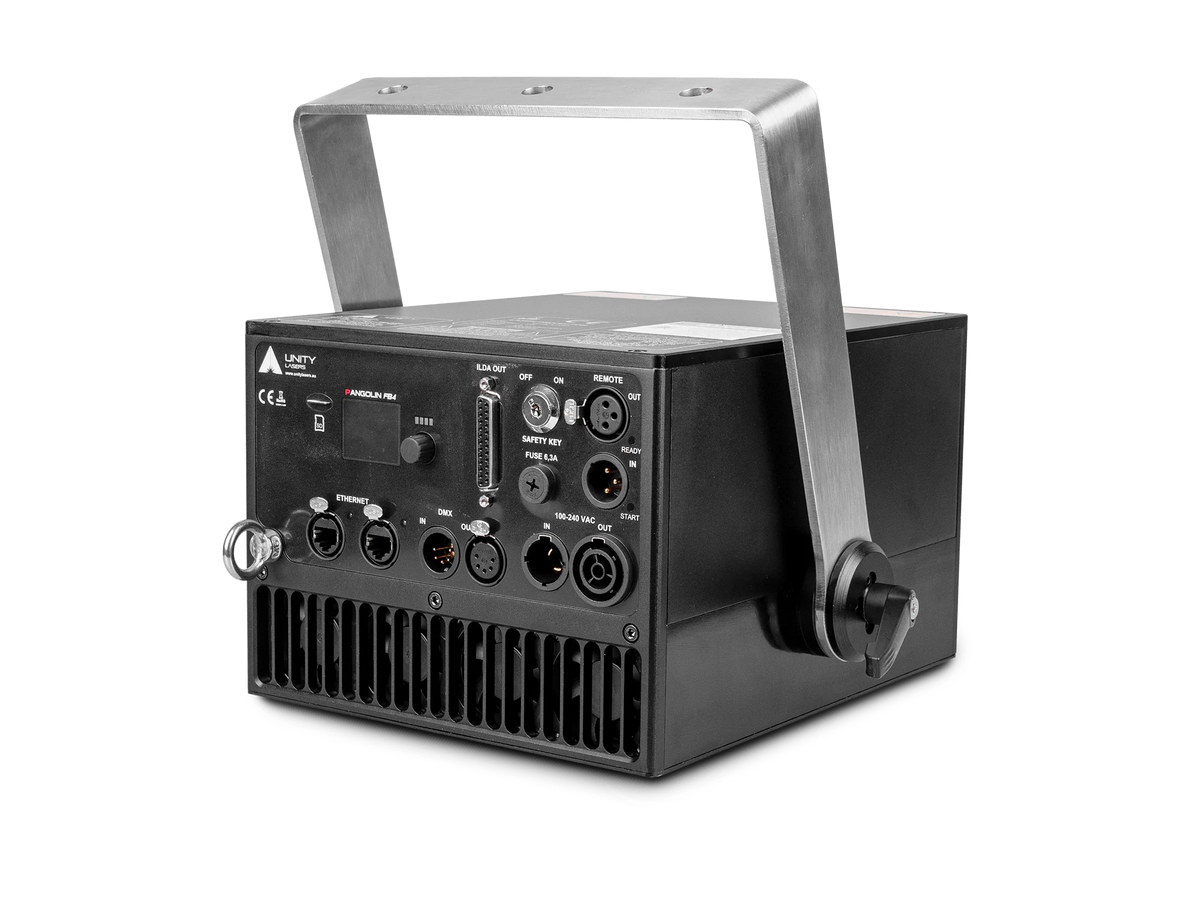

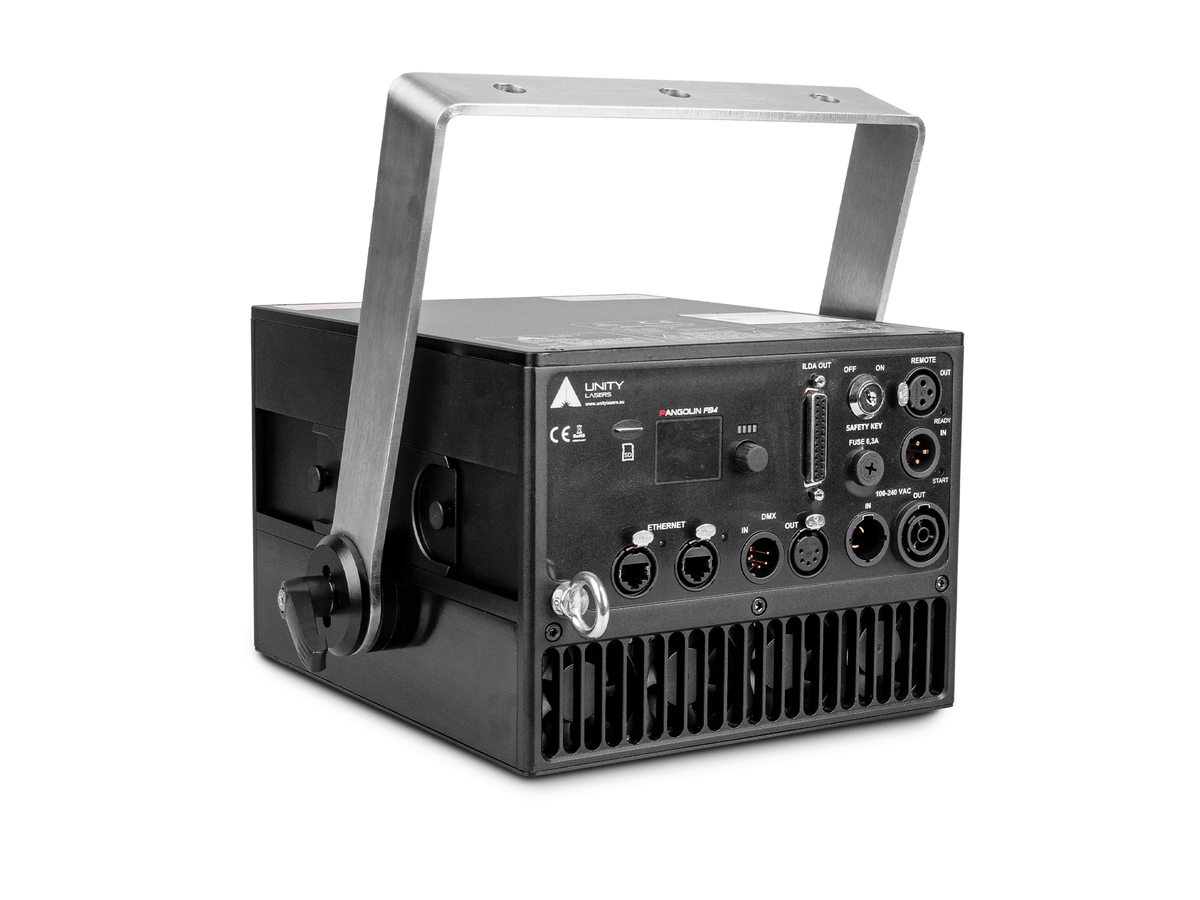

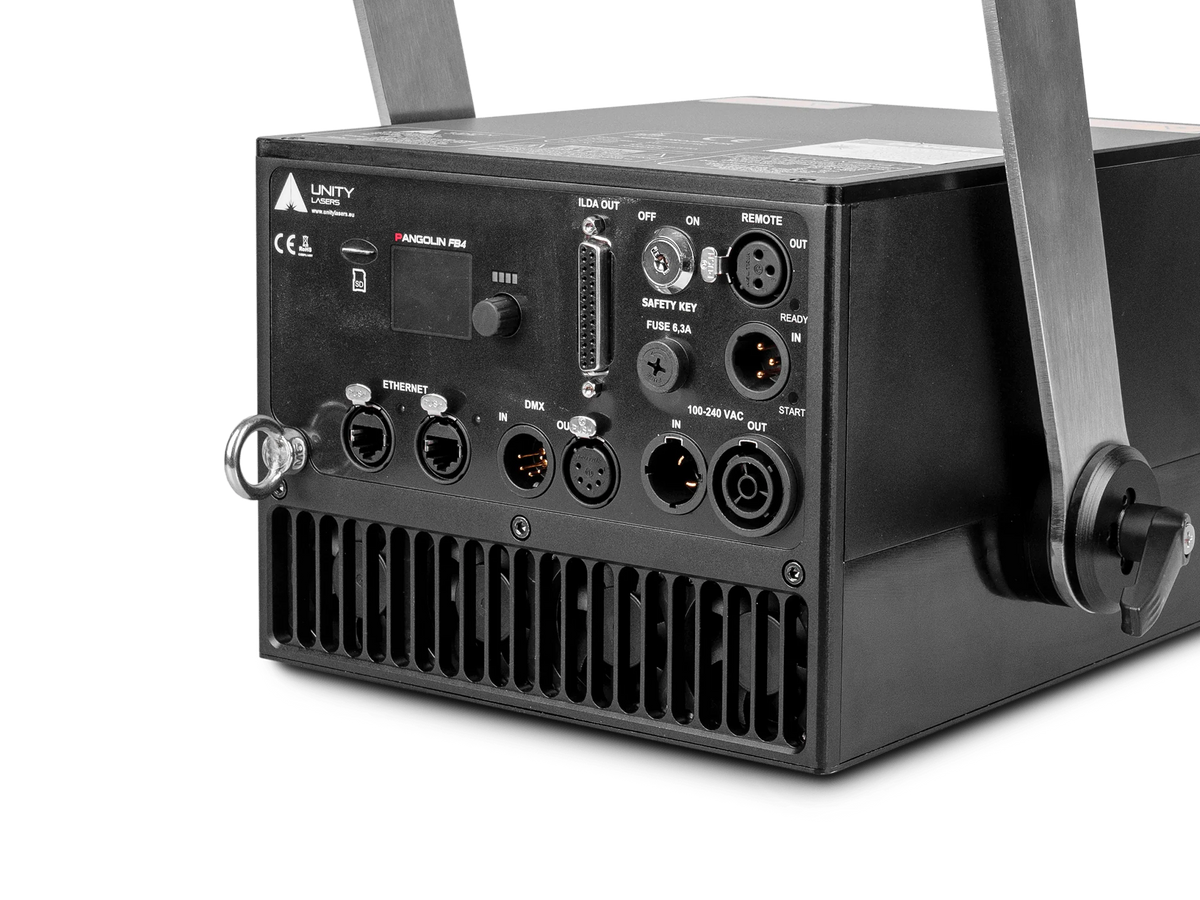

| System Features: | All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 300 | Width: 307 | Height: 181 |
