Unity LaserRay 13 RGB (XY-IP65) - SET OF TWO UNITS
- Regular price
- £9,568.00
- Sale price
- £9,568.00
- Regular price
-
Shipping calculated at checkout.
Only 80 Items In Stock.Hurry up before the product runs out!
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Exclusive
Product Description

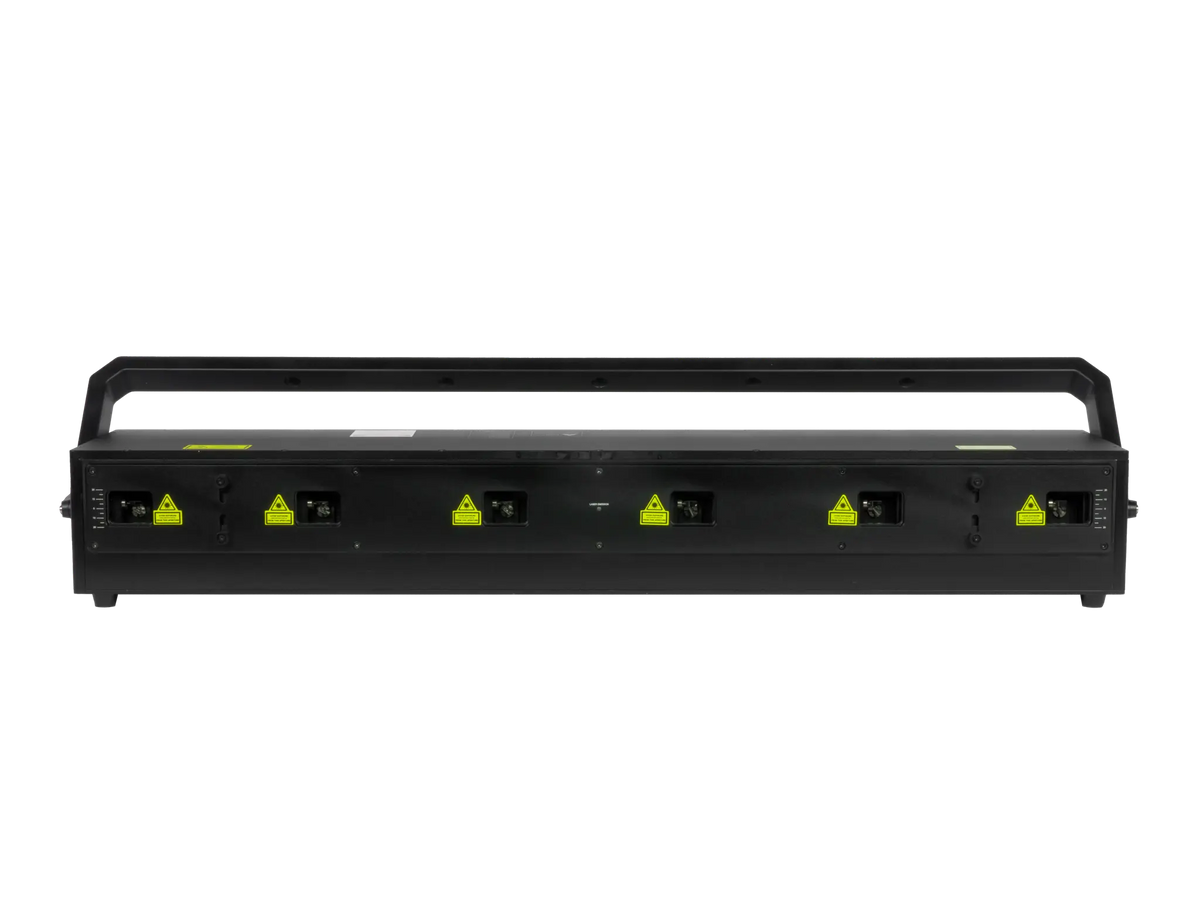

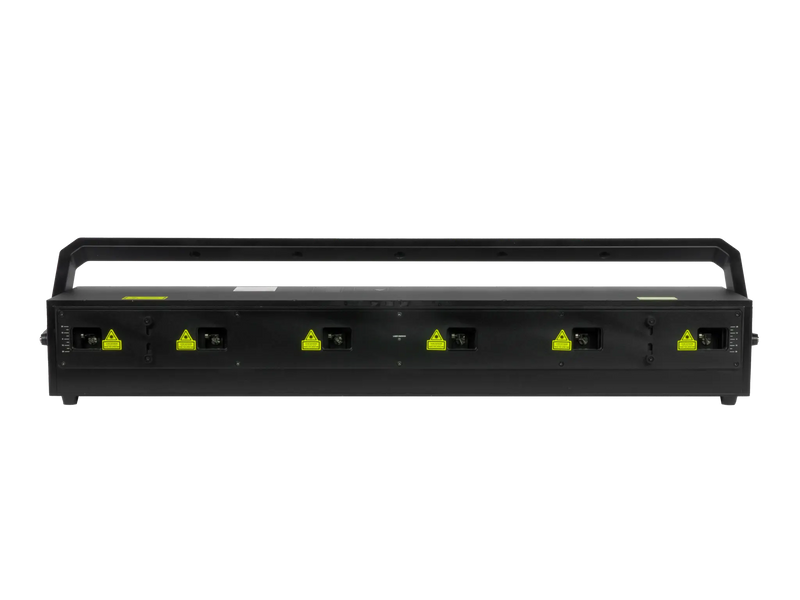

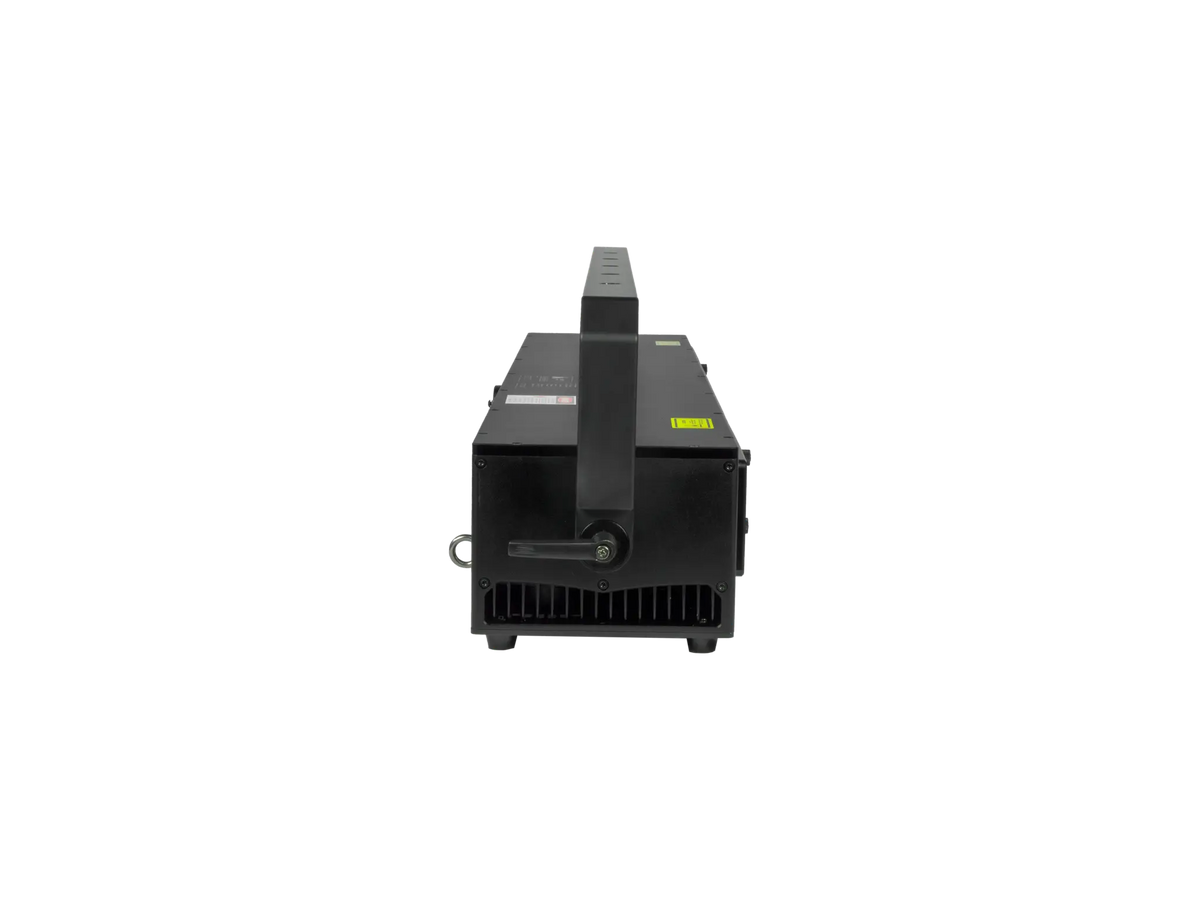

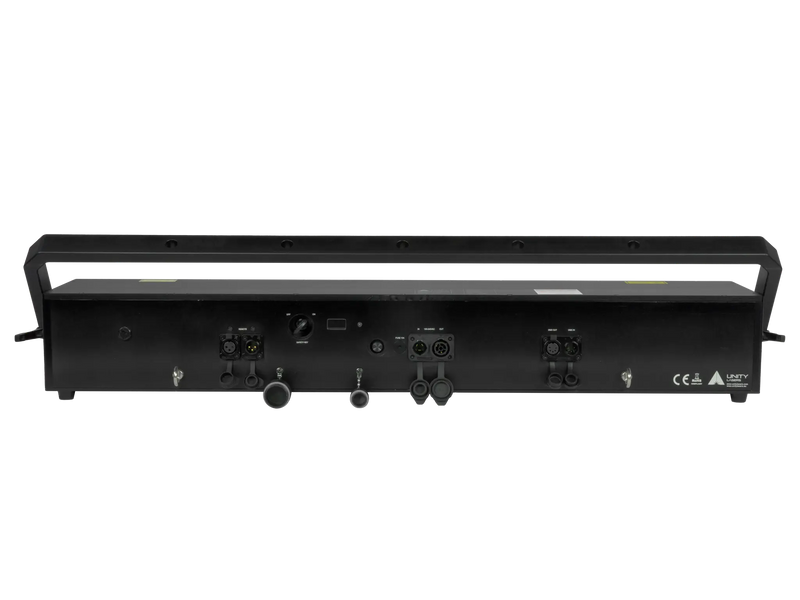

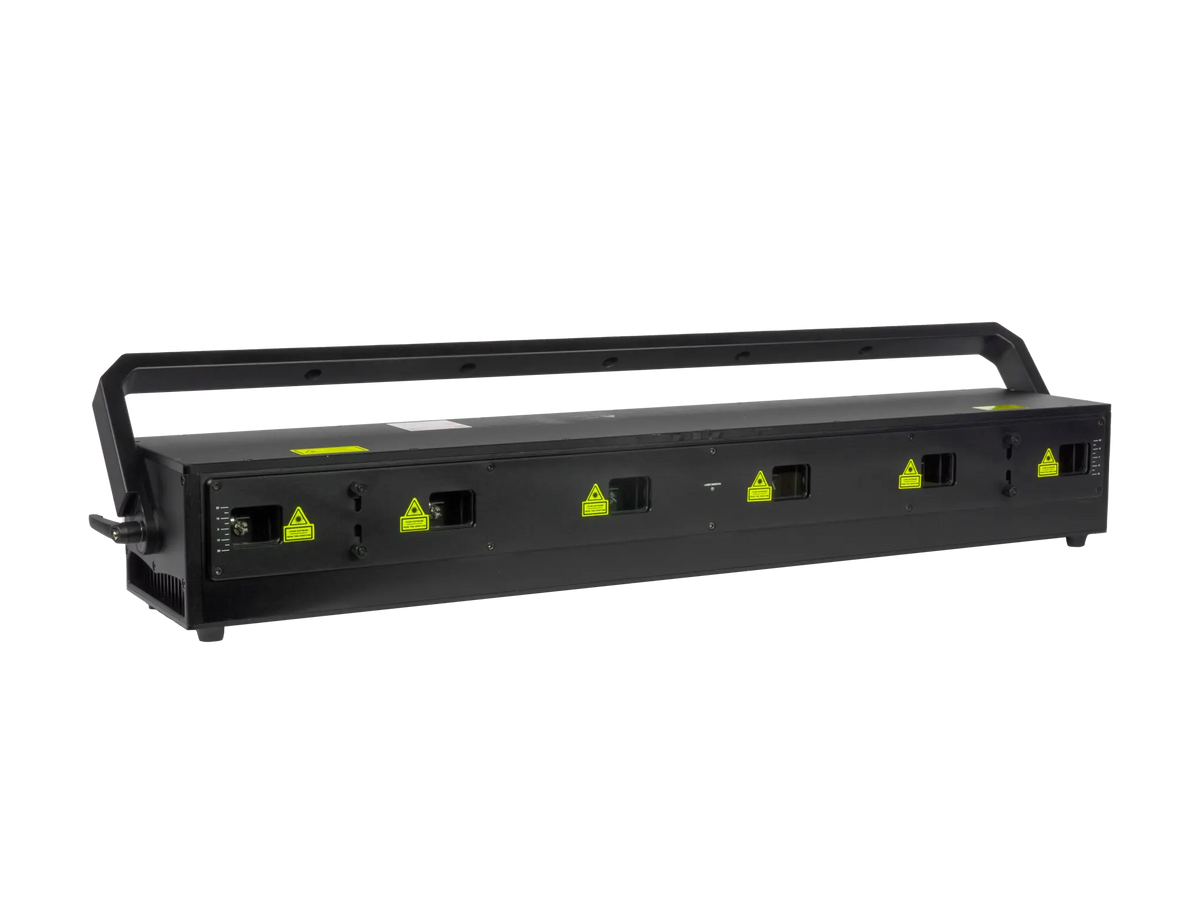

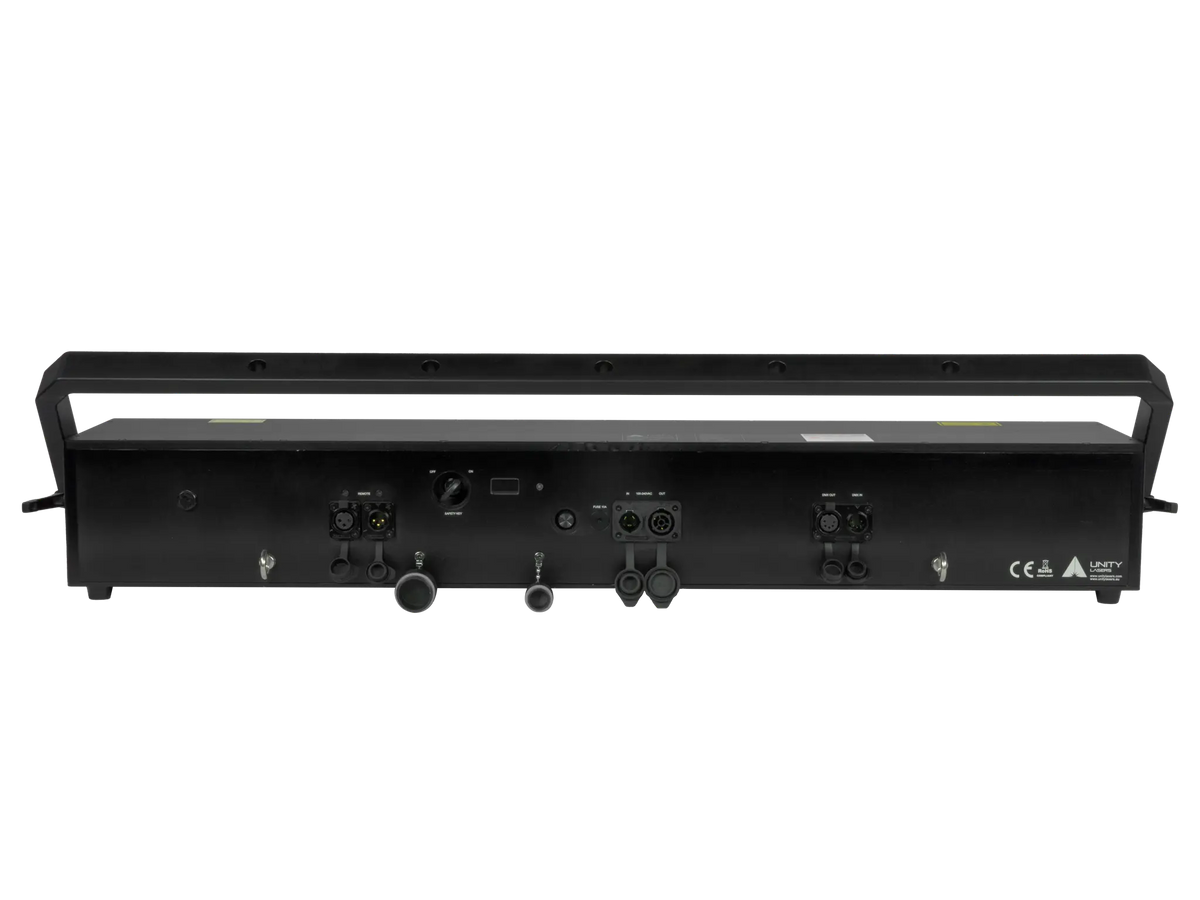

Unity LaserRay 13 RGB (XY-IP65)
The LaserRay 13 RGB (XY-IP65) is a powerful multi-head laser array equipped high speed XY scanning technology, built inside a weatherproof IP65 housing made for life on the road.
The Laser Ray 13 is designed for lighting professionals working on Stadiums, theatres, mega clubs, and small to medium outdoor shows.
With the integrated DMX control hardware and 35-channel profile assignment per output, control is a breeze. You can setup, design, and control the LaserRay 13 from the lighting console of your choice.
So whether you are using the LaserRay by itself, or in addition to your existing laser setup, you can create breath taking, impactful visual experiences.

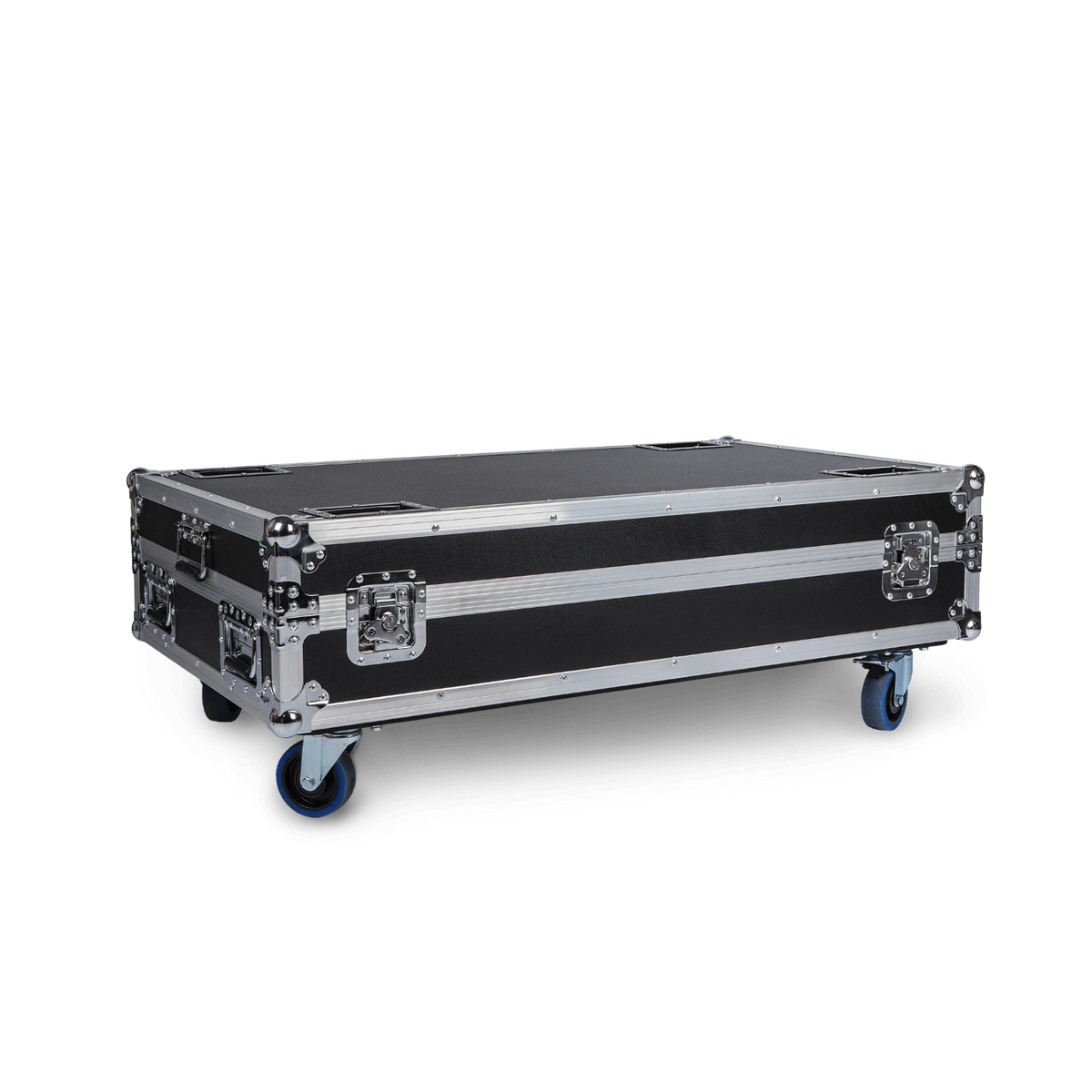

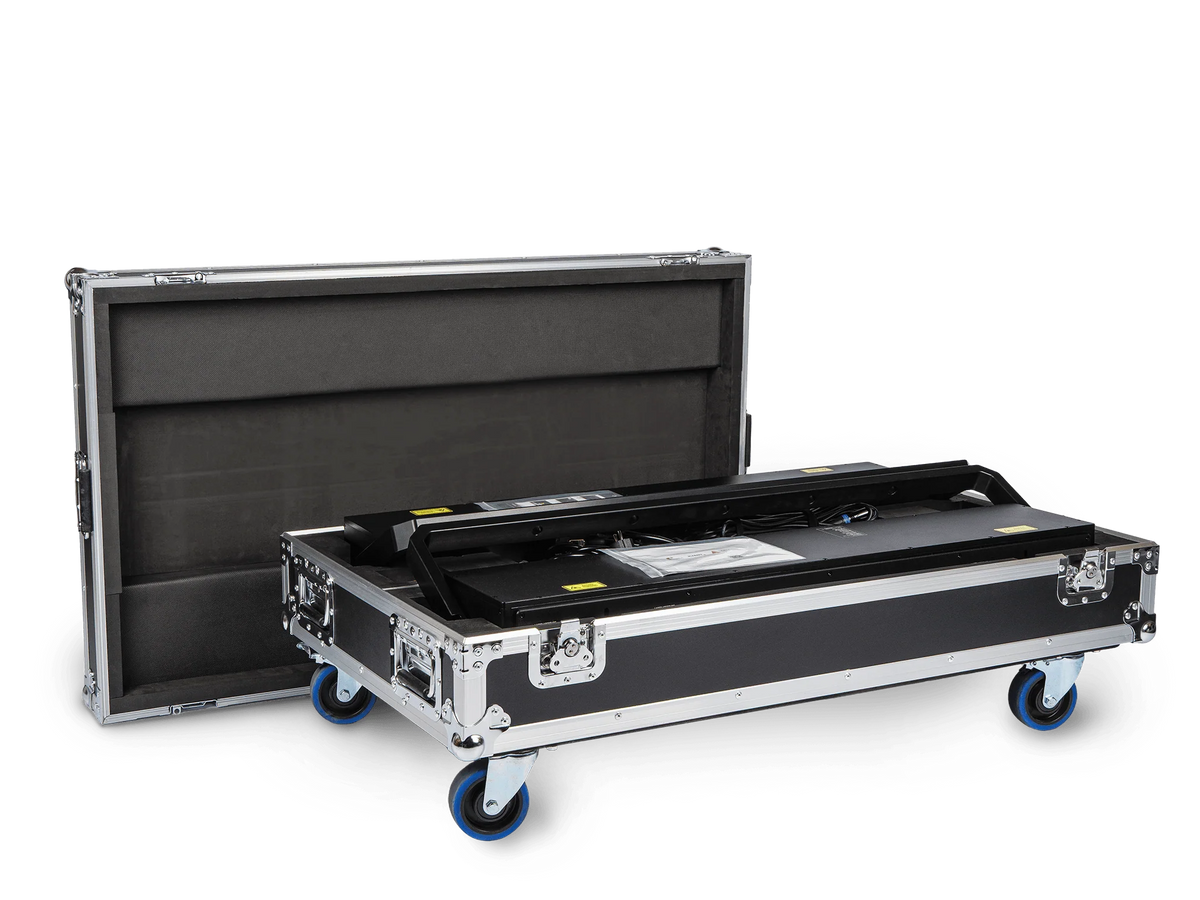

The set contains two laser bar units in a single flight case.
Specifications
| Product Name: | Unity LaserRay RGB (XY-IP65) - set of 2 units |
| Type Of Laser: | Full-colour, Semiconductor diode laser system with six independent XY scanning outputs |
| Guaranteed Optical Output: | >13.2W (total) >2.2W (per single output) |
| Suitable For: | Lighting professionals: Stadiums, arenas, mega clubs, theaters, house of worship. Small and medium sized outdoor shows. |
| Control Signal: | DMX (35-channel assignment per each output) |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 45° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 24kg |
| Package Includes: | 2x LaserRay 13 RGB (XY) laser system with IP65 rated housing, heavy duty flight case, 2x Estop box, 2x Estop cable (10M/30ft), 2x DMX cable (10M/30ft), 2x power cable (1.5M/4.5ft), 2x interlock, 4x keys, manual, quickstart guide, variance card (* 2x service dongle if outside US) |
| R | G | B [mW]: | 600 | 800 | 800 (per output) |
| Beam Size [mm]: | 3 x 3 |
| Beam Divergence: | <1.4mrad [Full Angle] |
| Modulation: | Analog 100kHz |
| Power Requirements: | 100-240V/50Hz |
| Consumption: | Max. 600W |
| Operation Temperature: | (-10°C) - 45°C |
| Ingress Rating: | IP65 |
| System Features: | Adjustments are done via DMX from your lighting console for safety, zones, geometric correction, and colors. |
| Laser Safety Features: | Keyed interlock, Emission delay, Internal / Case interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate. |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 222 | Width: 998 | Height: 148 |
