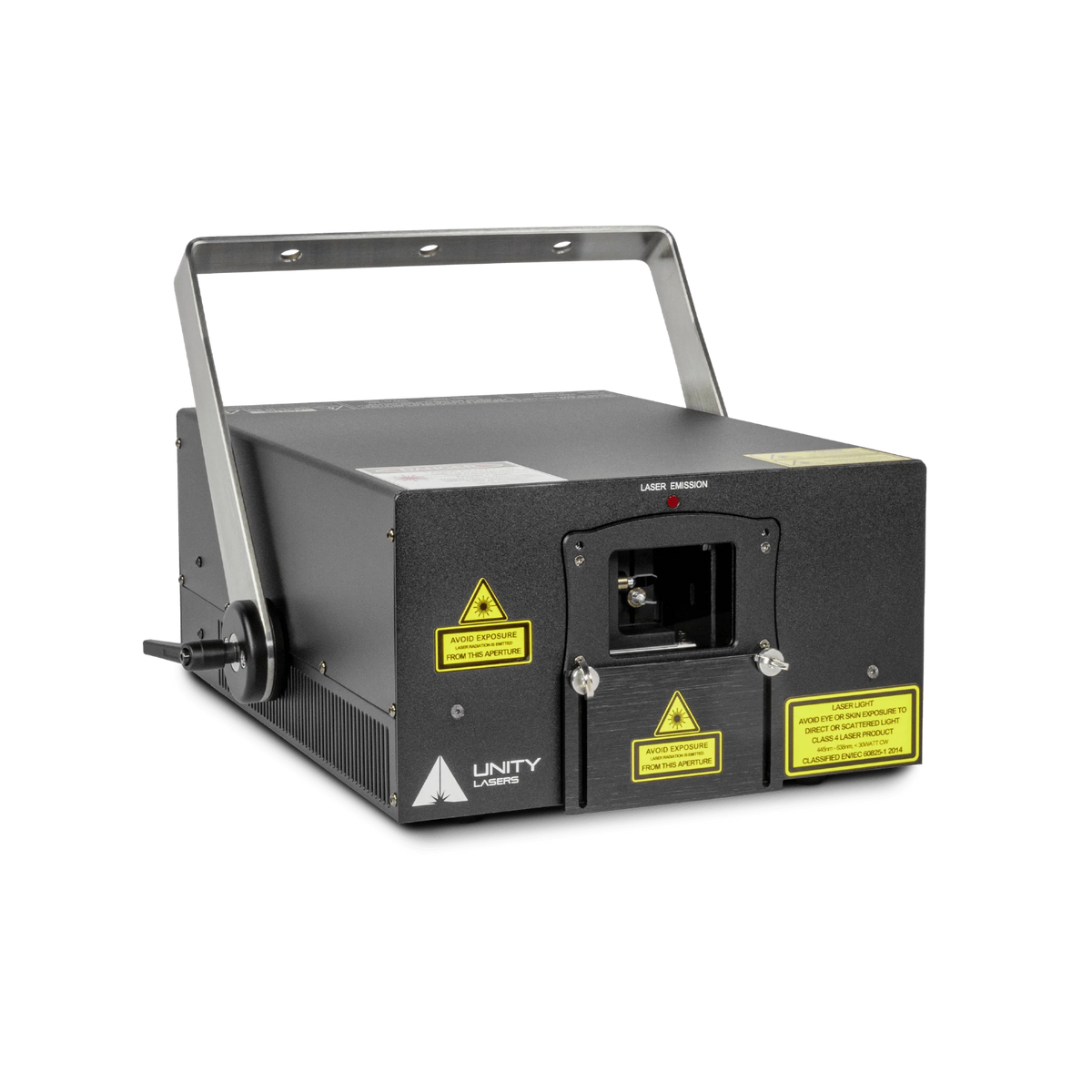

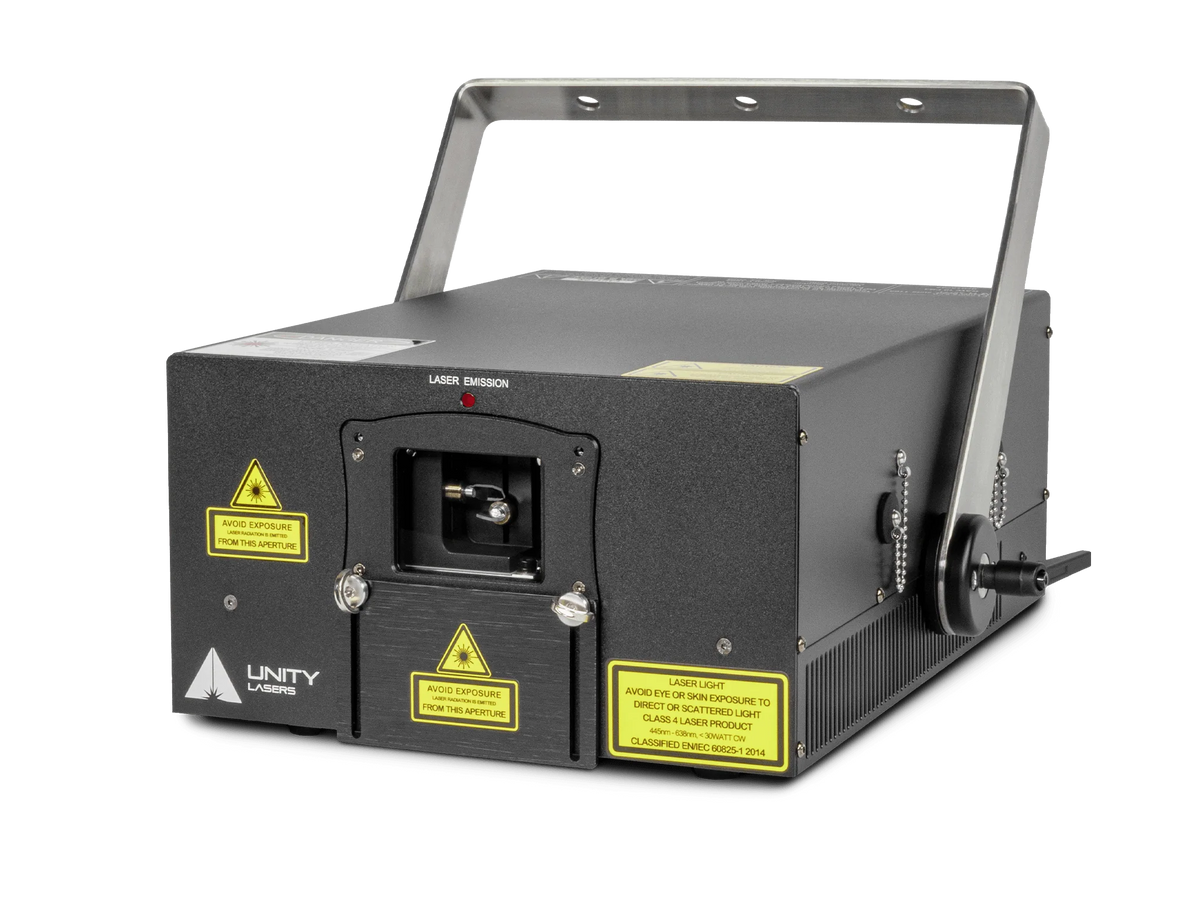

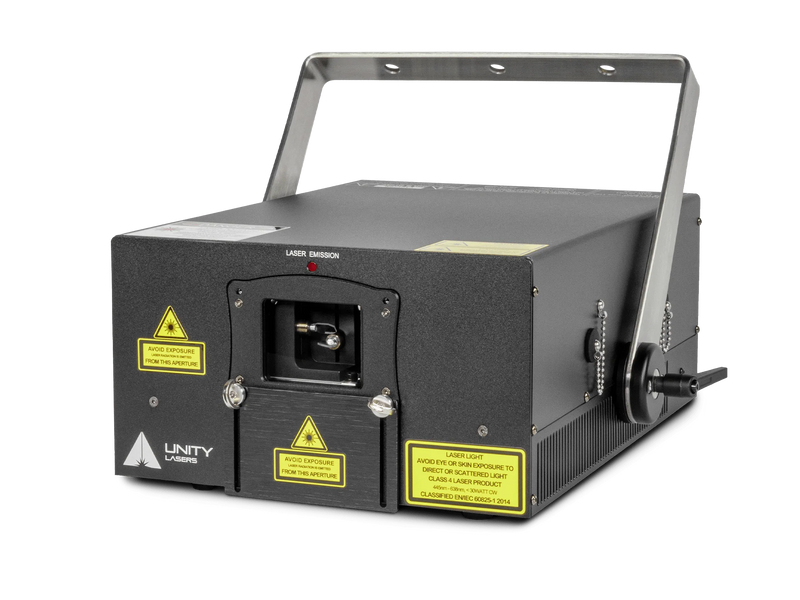

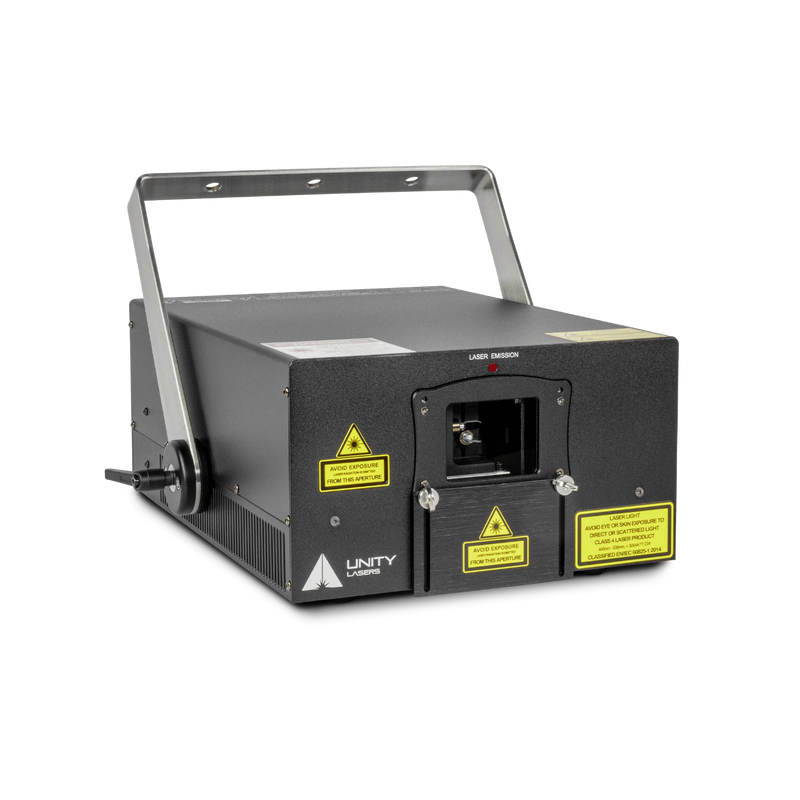

Unity RAW 10 FB4
The Unity RAW 10 FB4 is a 10-watt full-colour RGB diode-based laser projector with a professional FB4 control interface and features.
It is designed for those who want an economically friendly laser show system that has the power to produce beautiful aerial beam effects and high-resolution laser graphics, logos and text.
This RAW laser projector is suitable for semi-professionals and hobbyists and can be used in large clubs and venues.
With the Unity RAW FB4 lasers, you get more than just a laser projector.
Our FB4 hardware integration allows for versatile control options, whether from a lighting console, PC, or in stand-alone “auto” mode. Moreover, these lasers support all major lighting protocols, making them a seamless fit into any advanced multimedia show workflow.
Specifications
| Product Name: | Unity RAW 10 FB4 |
| Type Of Laser: | Full-colour, Semiconductor diode laser system |
| Guaranteed Optical Output: | >10W |
| Suitable For: | Clubs, DJs, large indoor venues (over 5,000 people), medium sized outdoor shows. Beam show, text, graphic, and mapping capable |
| Control Signal: | Pangolin FB4 DMX [Ethernet, ArtNet, DMX, sACN, ILDA | PC, Lighting Console, Auto Mode, Mobile App: Apple, Android] |
| Scanning System: | 30,000 points per second @ 8° |
| Scan Angle: | 50° |
| Safety: | Fully complies with the latest EN 60825-1 and FDA regulations |
| Weight: | 12kg |
| Package Includes: | Laser projector w/ FB4 DMX, protective case, Estop box, Estop cable (10M/30ft), ethernet cable (10M/30ft), power cable (1.5M/4.5ft), interlock (* service dongle if outside US), keys, manual, quickstart guide, variance card |
| R | G | B [mW]: | 2,700 | 2,700 | 4,800 |
| Beam Size [mm]: | 5 x 3 |
| Beam Divergence: | <1.1mrad [Full Angle] |
| Modulation: | Analog 50kHz |
| Power Requirements: | 100-240V/50Hz |
| Consumption: | Max. 350W |
| Operation Temperature: | 10-40 °C |
| Ingress Rating: | IP4X |

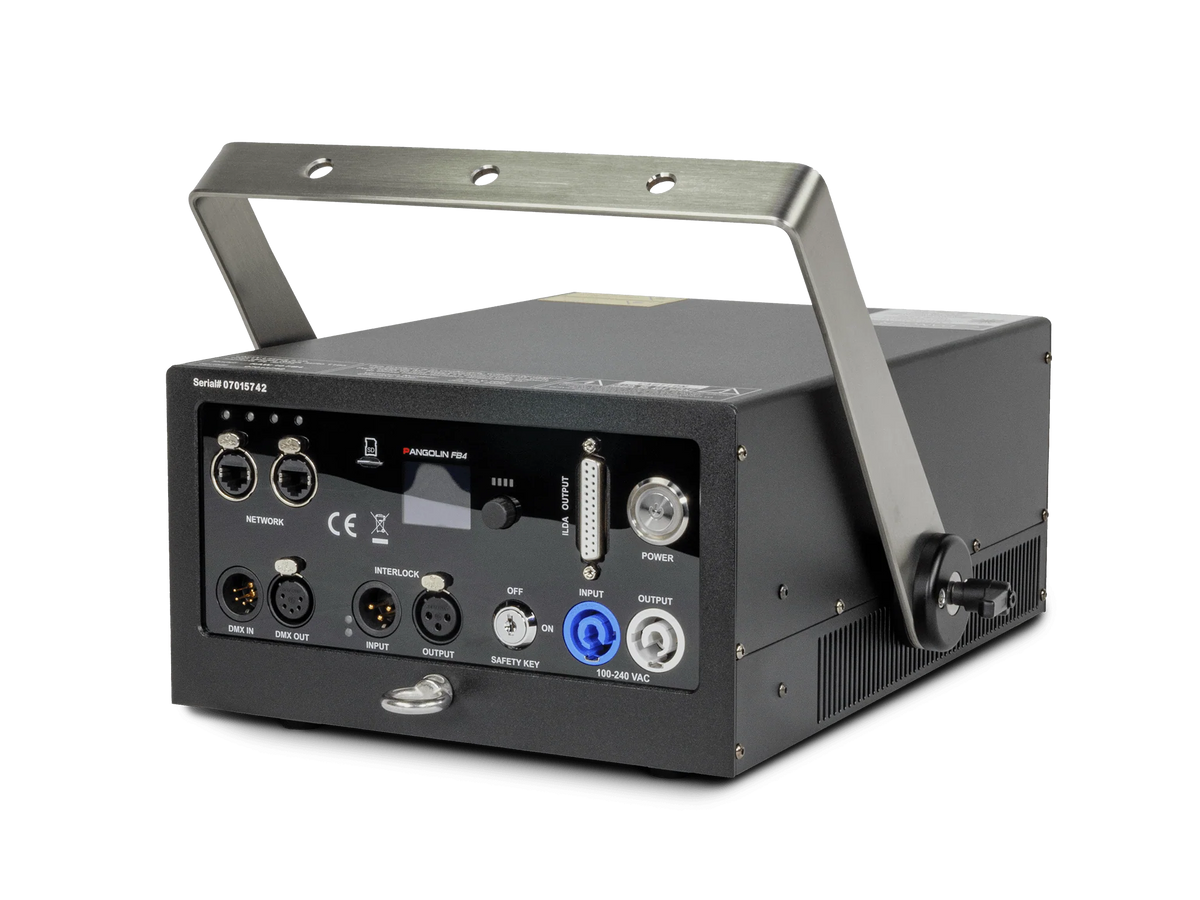

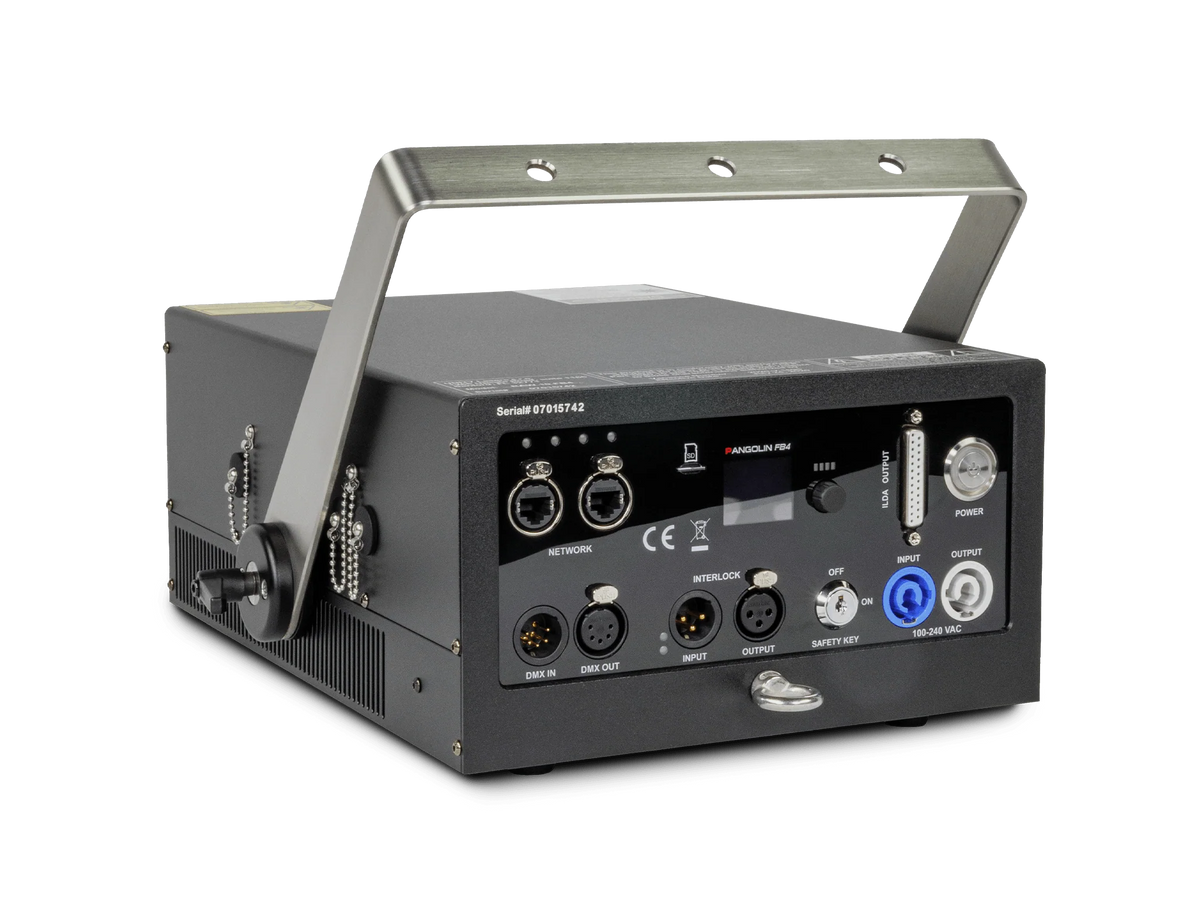

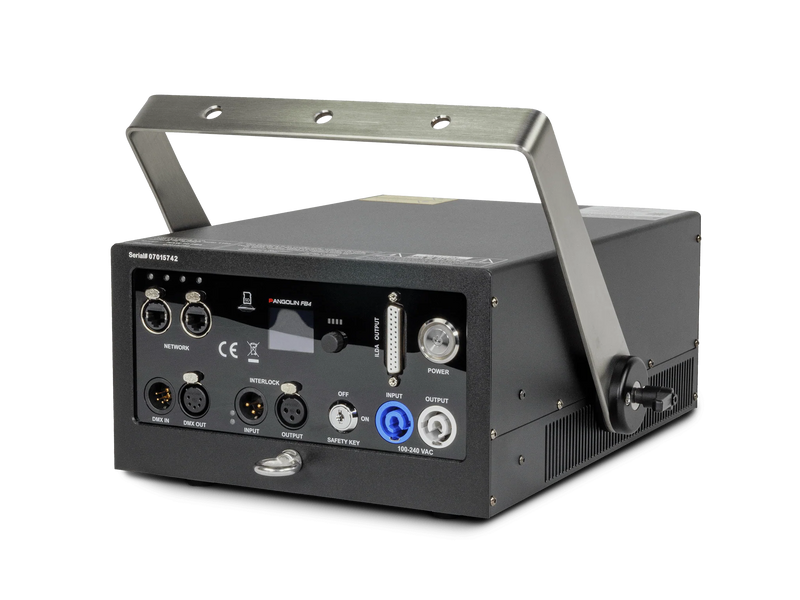

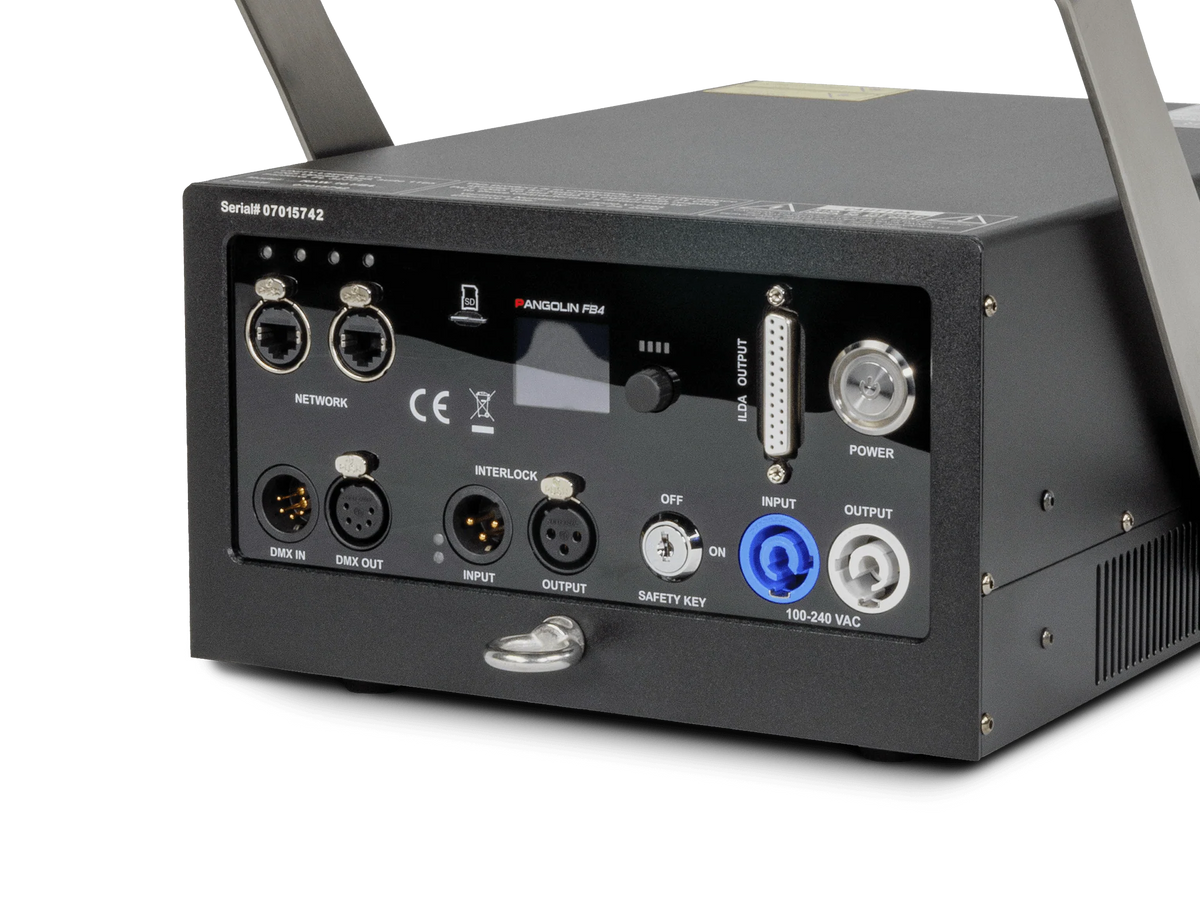

| System Features: | All the adjustments, such as power output of each color, X & Y axes invert, X & Y size and position, safety, etc., are managed digitally by the FB4 control system. Ethernet in, power in/out, DMX in/out, Estop in/out, ILDA in. |
| Laser Safety Features: | Keyed interlock, Emission delay, Magnetic interlock, Scan-fail safety, Mechanical shutter, Adjustable aperture masking plate |
| Notice: | *Due to Advanced Optical Correction technology used in our laser systems, each laser colour's optical power output may slightly differ from the specification of the respective laser module(s) installed. This does not affect the total guaranteed power output |
| Dimensions [mm]: | Depth: 340 | Width: 247 | Height: 148 |
